Introduction

The Japanese faction in Enlisted has great potential for expanding its arsenal with interesting captured weapons. This topic proposes adding a unique modification of the Madsen machine gun, captured by the Japanese in large quantities on the island of Java.

---

Shortened Dutch Madsen (Karabijnmitrailleur) — Captured on Java

Historical Background and Scale of Captured Weapons

During the Dutch East Indies campaign in the spring of 1942, the Imperial Japanese Army captured the arsenals of the Royal Netherlands East Indies Army (KNIL). Among other wealth, the Japanese acquired specific models of small arms that were perfectly suited for jungle warfare.

Madsen carbine-machine gun in the American guide on Japanese weaponry “Handbook on Japanese Military Forces, TM-E 30-480, C6, Changes No. 6” (War Department, 15 Sep 1945).

According to the Japanese army report 第３編 「ジャバ」島に於ける調査事項 (Part 3: Survey Items on “Java” Island) (JACAR Archive, code C14110703700), the following was captured on the island of Java alone:

Item Name	Total Quantity Confiscated	Condition: Good (Highest)	Condition: Average	Condition: Poor (Lowest)
Military swords (sabers)	40,552	7,273	10,671	22,608
Bayonets	27,265	9,839	13,655	3,771
Rifles	37,581	14,184	6,716	16,681
Carbines	21,864	7,961	3,829	9,874
Automatic rifles	1,620	613	729	278
Pistols	14,120	5,849	3,922	4,349
Submachine guns	4,649	1,551	98	2,994
Hunting shotguns	2,452	1,301	—	1,151
Light machine guns	1,081	858	101	122
Heavy machine guns	2,788	2,037	657	94
13.2mm automatic cannons	15	14	—	1

The document separately records the capture of 430 functional 6.5mm Madsen light machine guns. At the same time, impressive stockpiles of captured ammunition of the same caliber guaranteed uninterrupted supply and allowed the weapon to be actively used in combat.

What is a Karabijnmitrailleur?

The Dutch colonial Madsen differed from the standard long-barreled machine gun. The KNIL required a weapon for mobile infantry assault groups, capable of overcoming the “last 300 meters” of an attack in harsh jungle conditions.

Photograph of Ito’s shock troop: after infiltrating the seemingly impregnable enemy fortress of Imphal, the soldiers blew up the reservoir and sowed chaos in the enemy camp. The soldier on the far left is armed with a Madsen carbine-machine gun.

Initially, cavalry Madsen M.15s were purchased in 1915. However, in 1926–1927, the Dutch radically modernized them at the arsenals in the city of Bandung. The weapon received the official designation “Carbine-Machine Gun” (Karabijnmitrailleur) .

Its main differences:

• The barrel was drastically shortened by 25 cm (down to 350 mm).
• The overall weight was reduced by 2 kg .
• The weapon was equipped with double-length telescopic bipods.

Madsen carbine-machine gun with a blank-firing adapter from the Nationaal Militair Museum collection.

---

Specifications

Specification	Value
Caliber	6.5 x 53 mm R Mannlicher
Weight with ammo	approx. 9 kg
Length	895 mm
Barrel length	350 mm
Feed system	24-round detachable box magazine
Rate of fire	450 rounds per minute

Note: Due to the low weight and compactness of this machine gun, its sprint speed could be increased for game balance purposes — for example, to the level of the Japanese Type 96.

---

Polls

Add the Madsen carbine-machine gun?

• Yes
• No

How should this weapon be introduced?

• Tech Tree
• Event - Standalone weapon
• Event - Squad weapon
• Battle Pass
• Premium Squad

Which BR (Battle Rating) should the weapon have?

• BR II
• BR III
• BR IV

---

Additional Photos

Photos

Madsen carbine-machine guns from the Nationaal Militair Museum collection.

Madsen carbine-machine gun from the Nationaal Militair Museum collection.

Madsen carbine-machine gun with a blank-firing adapter from the Nationaal Militair Museum collection.

Madsen carbine-machine guns, demonstration of the telescopic bipods.

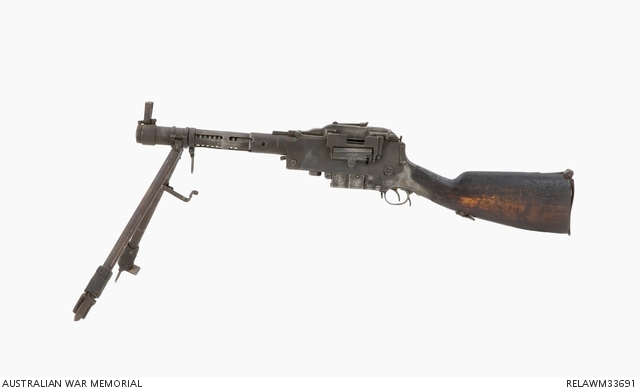

Madsen carbine-machine gun from the Australian War Memorial collection.

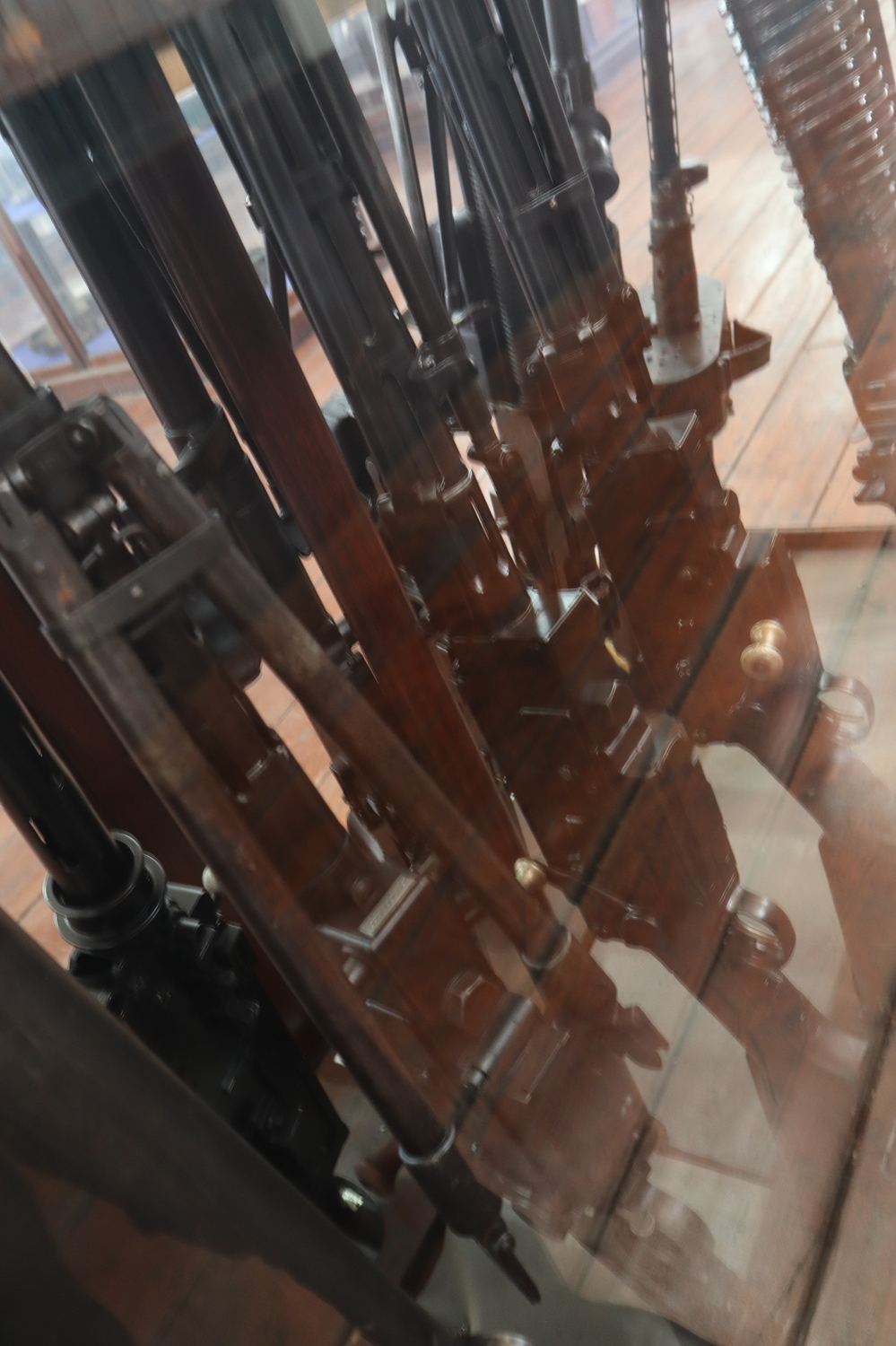

Madsen carbine-machine gun from the Royal Thai Army Ordnance Museum collection (พิพิธภัณฑ์ทหารสรรพาวุธ กรมสรรพาวุธทหารบก), courtesy of the 2483 Reenactment Group.

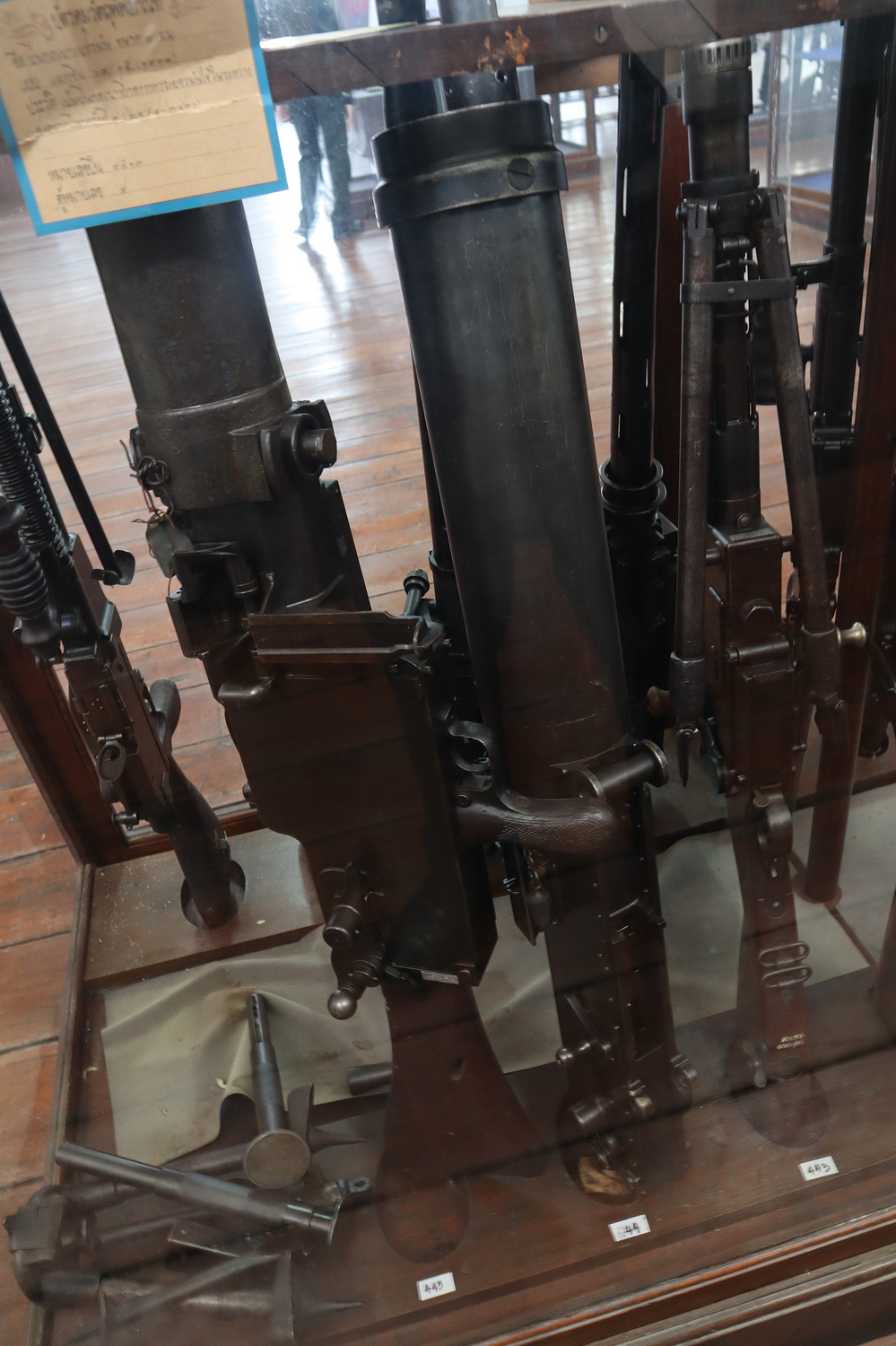

Madsen carbine-machine gun from the Royal Thai Army Ordnance Museum collection (พิพิธภัณฑ์ทหารสรรพาวุธ กรมสรรพาวุธทหารบก), courtesy of the 2483 Reenactment Group.

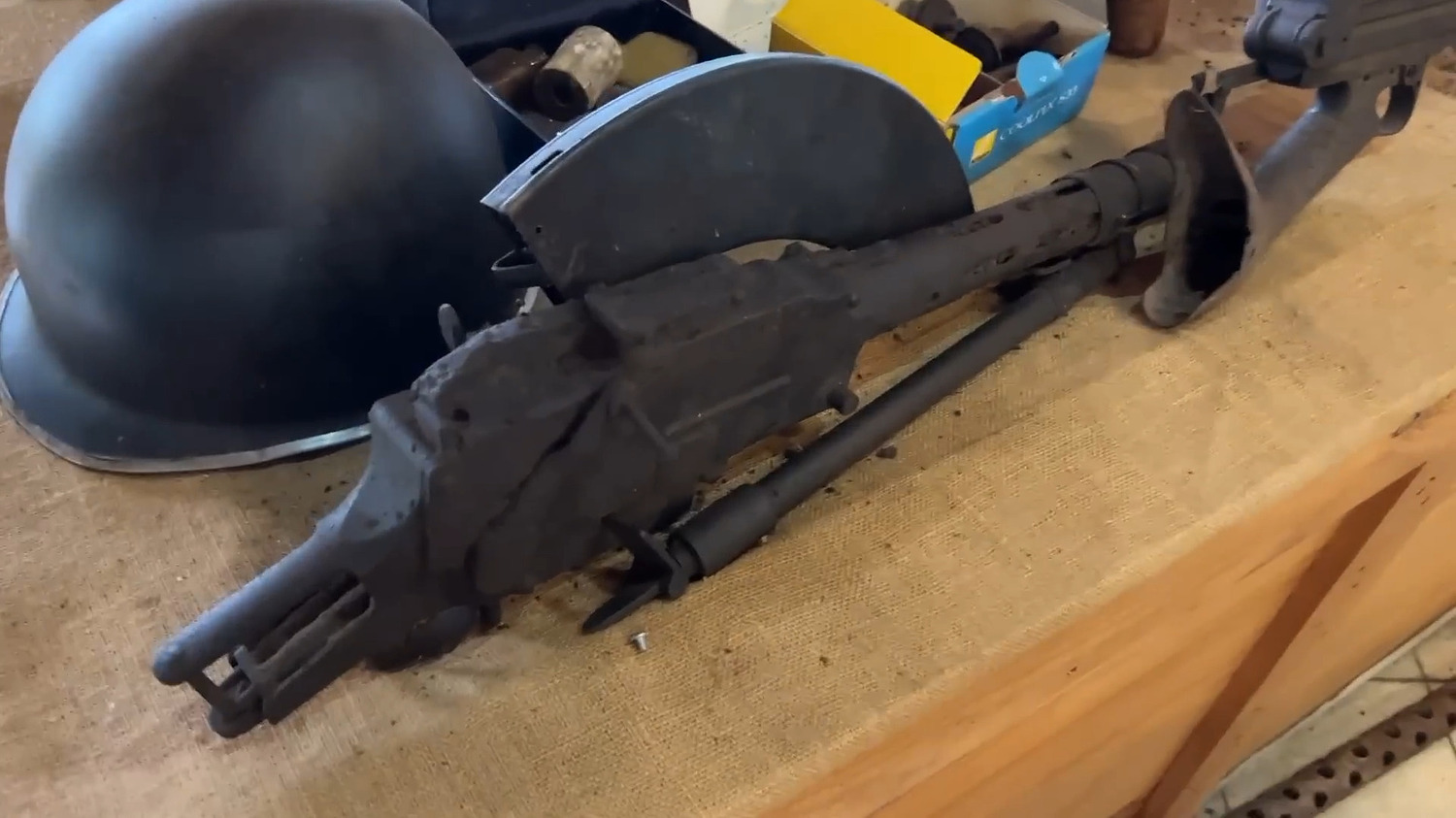

Madsen carbine-machine gun from the Guadalcanal Relic Museum collection.

An American soldier with captured Japanese weaponry on Guadalcanal. On the right is a Madsen carbine-machine gun.

Miyamaru platoon of the 22nd Special Base Force of the Imperial Japanese Navy in Kalimantan, December 1942. Note the two captured Madsen carbine-machine guns. Source.

---

Sources

Sources

JACAR: 第３編 「ジャバ」島に於ける調査事項 (C14110703700).

KNIL Reserve Officers’ Magazine: Tijdschrift voor de reserve-officieren van het Koninklijk Nederlandsch-Indisch Leger , 1935.

Book: Nederlandse Vuurwapens 1897-1942 Knil en Militaire Luchtvaart .

Book: Royal Netherlands East Indies Army 1936–42 .

---

THANKS FOR YOUR ATTENTION

---

[pizza_loan_TWU]

Captured!!!1!1!1!1! Red alert! No!!!

[Soulota101-live]

BR 4 seems too high for a Madsen, unless it had maybe 50 or 75 rounds

[Euthymia07-live]

I have noted it, thanks
