G8N1
DESCRIPTION

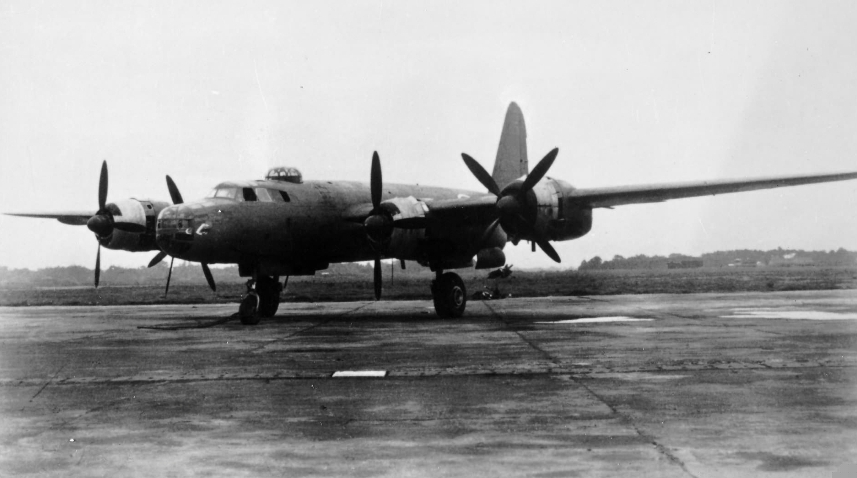

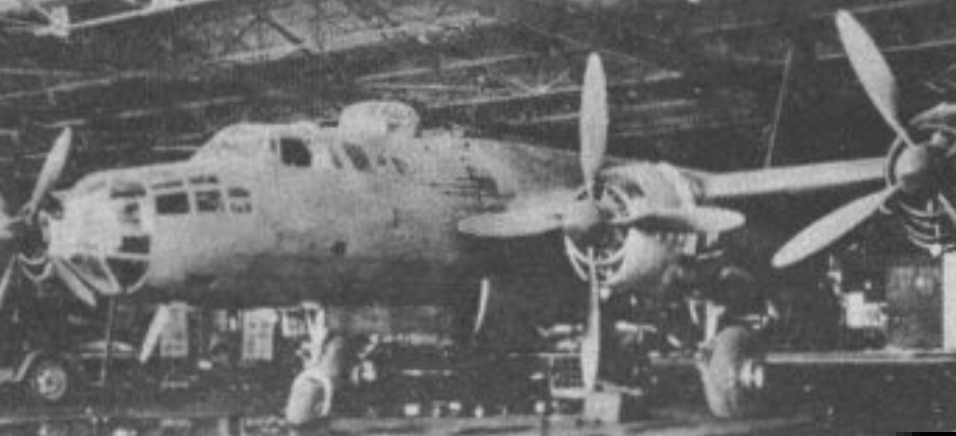

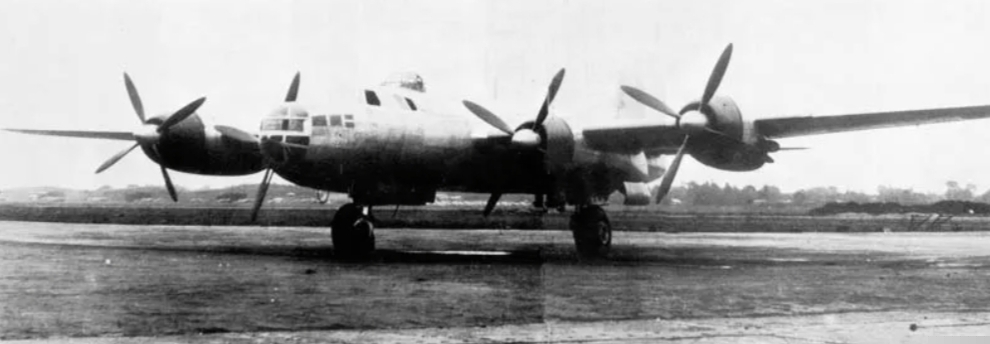

Nakajima G8N1 Renzan is an experimental Japanese four-engine heavy bomber developed by the Nakajima company in 1944. By mid-1942, both the military and Nakajima engineers began to realize that the first Japanese four-engine bomber, G5N1 Shinzan, turned out to be an unsuccessful aircraft that not only had a large number of teething problems, but also no longer met the requirements of the time. Because of this, in mid-1943, within the framework of a new technical requirement under which the Imperial Japanese Navy wanted to receive a strategic bomber rather than a larger analogue of the G4M, the company’s design team began creating a new four-engine bomber, already taking into account the experience gained from designing the G5N.
The future G8N1 Renzan, in addition to a laminar-profile wing and powerful Nakajima Homare 24 engines, received Hitachi 92 turbochargers, which together made it possible to achieve excellent flight performance at high altitude. At the same time, the engineers did not skimp on defensive armament, consisting of several 20-mm Type 99 Model 2 cannons and 13-mm Type 2 machine guns.
The G8N1 made its first flight on October 23, 1944, and subsequent tests showed great promise for the new aircraft. However, by that time the Navy needed fighters and interceptors more than heavy bombers, and after the start of American air raids on the Japanese islands all plans for the production of the G8N were disrupted. In total, only 4 G8N1 prototypes were built, one of which was tested in the USA after the war.
SPECIFICATIONS
Maximum speed: 512 km/h
Rate of climb: 7.2 m/s
Turn time: 24.4 s
Maximum altitude: 11,156 m
Takeoff run: 488 m
Crew: 8-10 people
Engine: 4 x Nakajima NK9K-L
Length: 22.9 m
Wingspan: 32.5 m
Wing loading: 283 kg/m²
Base mass: 19.86 t
Fuel in main tanks: 11.81 t (5h 13m)
Limit speed: 680 km/h
Limit Mach number: 0.64 M
Limit overload: ≈ -2/3 G
Flap destruction P / V / B: 270 / 322 / 332 km/h
Landing gear destruction: 330 km/h
ARMAMENT
3 × 2×20-mm cannon Type 99 Model 2 Mark 5
Ammunition: 1600
Turret — 2 × 13-mm machine gun Type 2
Ammunition: 400
2 × Turret — 13-mm machine gun Type 2
Ammunition: 600

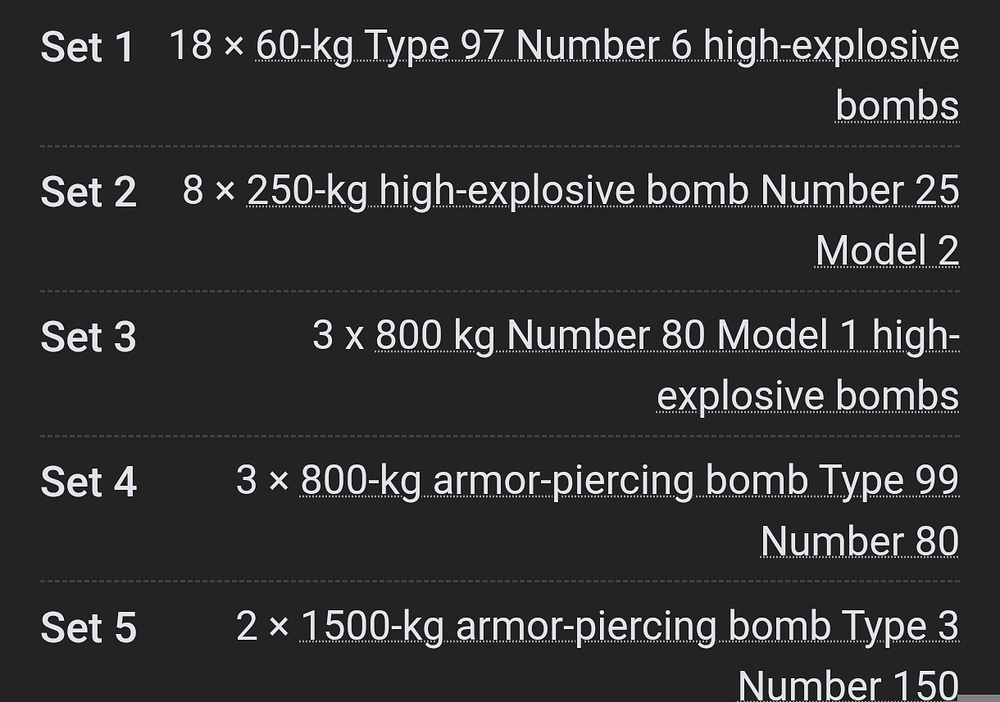

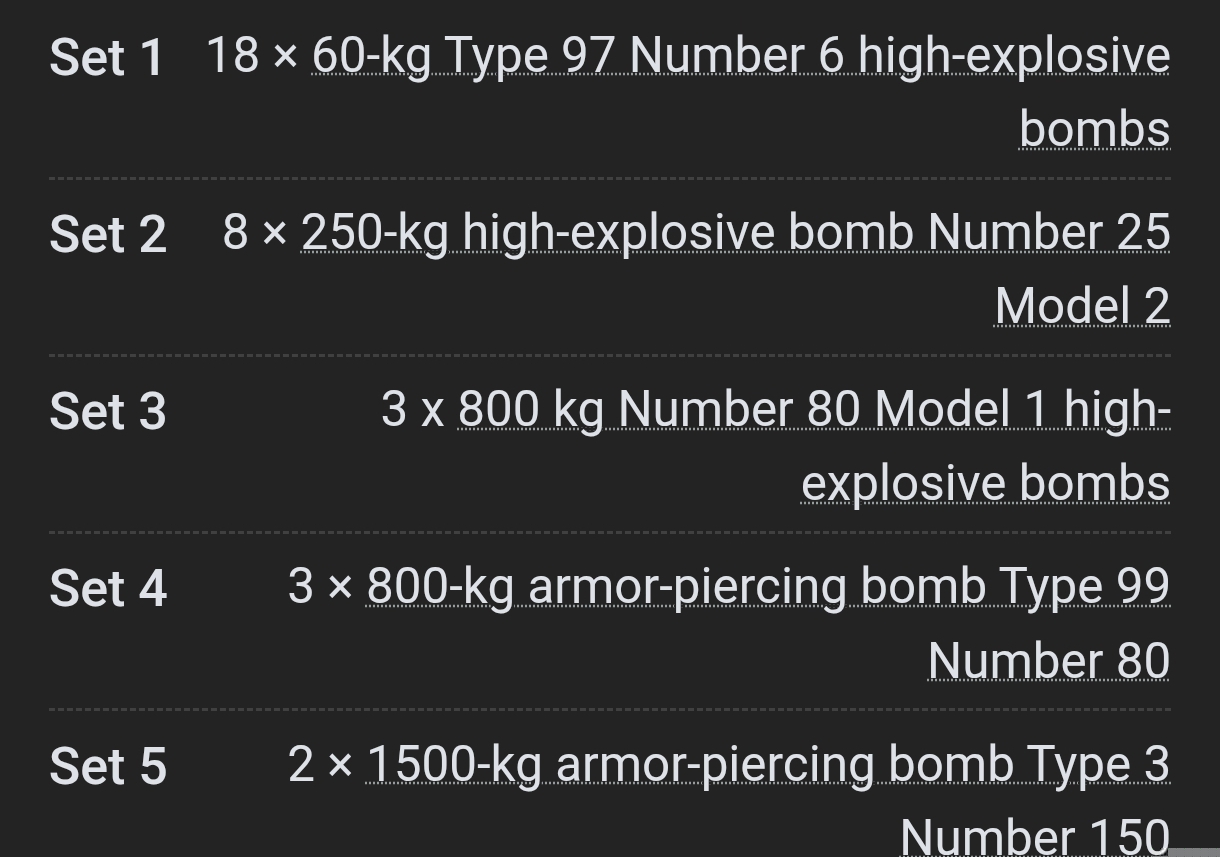

Suspended armament:
WOULD YOU LIKE TO SEE IT IN THE GAME?
-
YES
-
NO
AS
- TECH TREE
- EVENT
- BP
- PREMIUM SQUAD
AT BR
- 1
- 2
- 3
- 4
- 5
SUSPENDED ARMAMENT
- SET 1
- SET 2
- SET 3
- SET 4
- SET 5
THANK YOU FOR YOUR ATTENTION!![]()
Бобёр G8N1 - Техника - Enlisted — официальный форум (Suggestion like this but on RU forum)
