Rotary Magazines
A few posts ago, in our study about capsule magazines, reader William Reichlinger posted an interesting comment asking whether a 1941 Johnson rifle uses a capsule magazine or not and that wikipedia mentions that it is a rotary magazine and whether it is a subclassification of a capsule magazine or not. Therefore, in today’s post, we will study all about the rotary magazine.
To answer the question briefly, a rotary magazine uses a different feed mechanism than a capsule magazine. A capsule magazine has a spring and follower to push rounds from the magazine into the chamber and it is always a fixed magazine. A rotary magazine, on the other hand, can be either a fixed or detachable magazine and the feeding mechanism consists of a sprocket (or sprockets) that is rotated by a torsion spring. The cartridges fit between the teeth of the sprocket and as the sprocket rotates, it feeds the rounds to the chamber. The figure below shows the various parts and the completed assembly of a rotary magazine.
Parts of a rotary magazine. Click on the image to enlarge.
The cartridges fit between the teeth of the two sprocket wheels and are fed into the chamber of the firearm, powered by the tension of the torsion spring.
One of the early designs for a rotary magazine design is by Otto Schonauer in 1885. Otto Schonauer was a protege of the famous German firearms designer, Ferdinand Mannlicher and his rotary magazine design appeared in a turnbolt Mannlicher .43 caliber rifle design in 1887. However this rifle was not very successful and the magazine was not perfected yet. A much improved rotary magazine was featured in the Mannlicher-Schonauer M1903 rifle design, which was very successful.
Diagram of a Mannlicher rotary magazine by itself. Click on the image to enlarge

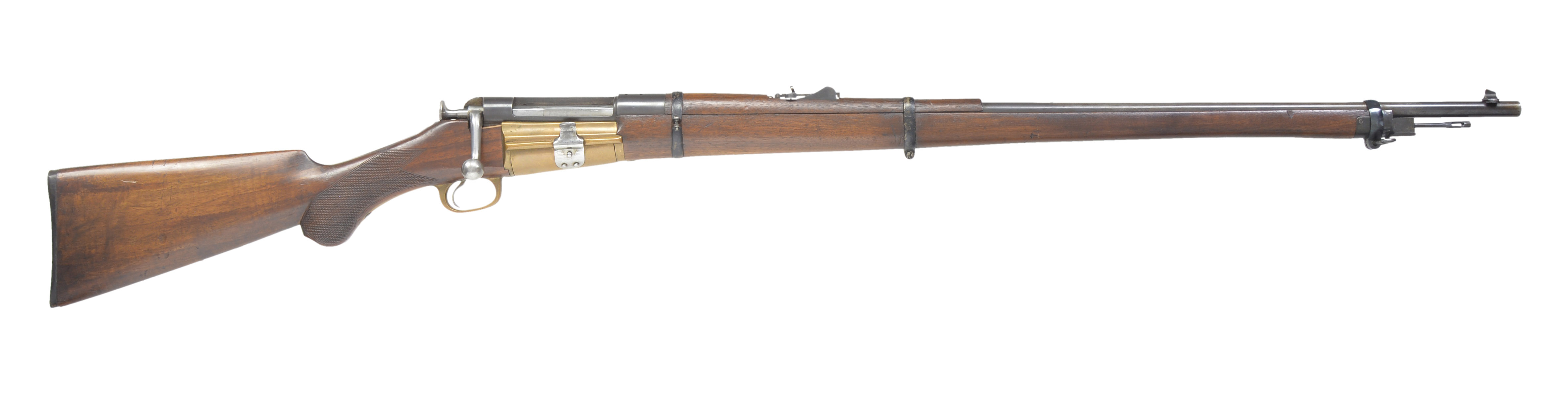

A Mannlicher rotary magazine attached to a rifle. Click on the image to enlarge.
Meanwhile, over in the United States, Arthur Savage was also working on a rotary magazine design, which he perfected in 1893 and obtained a patent for it. This design was used in the Savage M1895 and Model 99 rifles.
Patent documentation for the Savage Model 99 rotary magazine. Click on the image to enlarge. Public domain image.
Interestingly, this rifle’s rotary magazine design also includes a counter that shows the user how many cartridges are left in the magazine. It must be noted that not all Savage Model 99 rifles have this rotary magazine, as some later versions feature a box magazine instead. The Model 99 was produced by Savage for nearly 100 years (1899 - 1998) and has been chambered for many different cartridges.
Another firearm that uses a rotary magazine is the Johnson M1941 rifle, which we mentioned at the start of this post. This rifle was invented by Melvin Johnson and the magazine design is shown below from his patent application:
Click on the images to enlarge. Public domain images.
The entire Johnson patent document may be viewed online here.
