T23E1; T23E2 USA Light machineguns

Greetings to the EU forum residents :wave:

While looking for information about the bazooka, I accidentally came across reports of a light machine gun

T23E1

as far as I understand, the T23E1 was fed using a 100-round belt

T23E2

I have a feeling that I have found very valuable documents/reports and an exclusive weapon sample.

There is literally a couple of pictures and lines of information about these machine guns on the Internet.

so I ask for your help, because translating the text of a document from English to Russian is so easy
so whoever wants to help, who speaks English, please translate and write the characteristics

Sources:
Report 1538-A
Report 1538-B

12 Likes

About T23E1 here , I summarized a little (Also my Russian sucks so I got help from google translate)
О T23E1 здесь, я немного подытожил (к тому же мой русский - отстой, так что мне помог google translate)

Произведено компанией Springfield Armory, Спрингфилд, штат Массачусетс. - Автоматическое оружие с газоотводной автоматикой и воздушным охлаждением, с ременной подачей, способное вести как автоматический, так и полуавтоматический огонь. Нарезной ствол с четырьмя пазами, правый твист. Питание осуществляется из патронного ящика, вмещающего 100 патронов. Оружие весит около 26,65 фунтов. Создан на основе серии T10. Усовершенствованный T23 с добавлением редуктора скорострельности типа Browning Automatic Rifle (BAR), позволяющего вести огонь в замедленном темпе. Оснащен пламегасителем, сошками и ручкой для переноски.
Вес без патронов, согласно отчету, составлял около 23 и одной четвертой фунта.

Manufactured by Springfield Armory, Springfield, Ma. - Gas-operated, air-cooled, belt-fed, automatic weapon capable of delivering both a high and low rate of automatic fire as well as semi-automatic fire. 4-groove rifling, right hand twist. Fed by ammunition box capable of holding 100 rounds. Weapon weighs approximately 26.65 lbs. Evolved from T10 series. Improved T23 with addition of a Browning Automatic Rifle (BAR) type rate reducer enabling weapon to fire at slow rate. Equipped with flash hider, bipod, carrying handle.
Weigh without ammo was stated in report to be around 23 and one fourth of pound

Скорострельность в автоматическом режиме составила 725 единиц, что было сочтено слишком быстрым, а в медленном - 400 единиц, что опять же было сочтено слишком быстрым.

Rate of fire in auto mode was 725 which was deemed slightly fast and in slow-auto was 400 which again was deemed too fast

Что касается причин, по которым он не был принят, то, как я уже говорил, скорострельность была признана несколько завышенной, но другие причины заключались в том, что он был тяжелее, чем Bar, и, согласно отчету, был тяжелее на 1 фунт, чем требовалось для испытаний, ствол был длиннее примерно на 3 дюйма, он был не так точен, как BAR или A6, не мог выдерживать экстремальные условия, такие как грязь и дождь, выносливость ствола не соответствовала стандартам испытаний.
As for reasons why it got not accepted like I told you fire rate was deemed slightly fast but other reasons were that it was heavier than Bar and report deems it at least 1 pound heavier than what test desired , barrel was long by about 3 inch , it was not as accurate as BAR or A6 , couldn’t handle extreme condition like mud and rain , Barrel endurance was not up to standard of the test

Другие причины: нет подходящего места для установки штатива
и замок безопасности не является 100% надежным
Other reasons = no good tripod mounting place
and safety lock is not 100 percent reliable

Вывод был таков: T23E1 не соответствует стандартам, чтобы заменить BAR, M1919A4 или M1919A6.
Conclusion was that T23E1 was not up to the standards to replace BAR or M1919A4 or M1919A6.

2 Likes

You have struck gold, my friend. The most important pages are 34-35 (T32E2) since those are the ones that provide the information for the reload animations.

2 Likes

Holy damn you are right let me translate those for our friend also(Never mind it will take too long to do that)

Thanks :pray:

I only found a conversation on the forum

https://www.m14forum.com/threads/can-you-identify-this.523107/

perhaps more information can be found

References:
NOTES ON MAGTERIEL IN ACCORDANCE WITH O.D.O. NO. 62-44. DESCRIPTION OF GUNS, LIGHT MACHINE CABLIBER .30, T-23E2. Prepared by Springfield Armory, Mass. July, 1944.

Keep it I’m fine with my 1919 thank you.

And about that page I already looked at it the part below is from there
А насчет той страницы, которую я уже просмотрел, часть ниже взята оттуда

There was 5 T23E2 test subjects and only number 1 and number 5 had a reduced fire rate mechanism like BAR.
На испытаниях было 5 T23E2, и только номер 1 и номер 5 имели механизм пониженной скорострельности типа BAR.

for T23E2 it seems that they are heavier than T23E1 at around 28 pounds and 27 pounds
для T23E2 кажется, что они тяжелее, чем T23E1, около 28 фунтов и 27 фунтов
T23E2 had a cyclic fire rate of 800 rounds per minute and when in slow auto it was around 600 rounds per minute.
Циклическая скорострельность T23E2 составляла 800 выстрелов в минуту, а в режиме медленного автоматического огня - около 600 выстрелов в минуту.

In the report it is stated that the main problem with T23E1 which was that it’s unsatisfactory functioning especially in rain and mud has not been remedied in T23E2 and thus it is unsuitable for infantry use as a line machine gun.
В отчете говорится, что основная проблема T23E1, заключавшаяся в неудовлетворительном функционировании, особенно в дождь и грязь, не была устранена в T23E2, и поэтому он непригоден для использования в пехоте в качестве легкого пулемета.

2 Likes

The reports are detailed I just summarized the main points that I thought were important for game
Отчеты очень подробные, я лишь обобщил основные моменты, которые показались мне важными для игры

2 Likes

Thank you

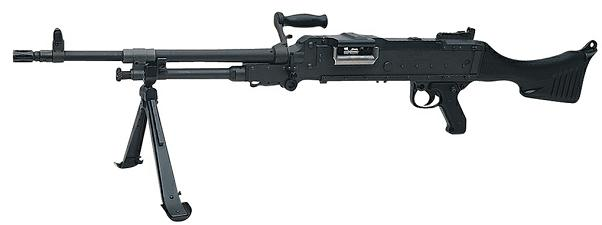

prototype T23 I see it for some reason FN-MAG /M240 :thinking:


2 Likes

This design evolved into the MAG58 which was later adopted by U.S. Forces as the M240 and later the M240G that will eventually replace the M60
Эта конструкция превратилась в MAG58, которая впоследствии была принята на вооружение американских войск под обозначением M240, а затем и M240G, которая со временем заменит M60.
Maybe that’s why
Возможно, именно поэтому

2 Likes

it turns out that with such a rate of fire and magazine it is not the worst machine gun for the game

2 Likes

The gun looks like a Call of duty nized version of the FN MAG and BAR.

1 Like

Я не вижу проблем в Т23, чтобы добавить его в игру, но я не думаю, что он должен быть в ТТ. По крайней мере, я так думаю, но опять же, T20 так же редок, как и T23, так что да, но я не думаю, что сейчас подходящее время для его добавления, может быть, после того, как Германия получит 100 снарядов MG.
I don’t see any problem in T23 for it being added to the game, but I don’t think it should be in TT At least that’s what I think but again T20 is also as rare as T23 so yeah, but I dont think its the right time to add it maybe after Germany gets a 100 round MG

I just wondered - is this the mass of the machine gun without a magazine and cartridges?
Or the mass with a loaded magazine

Well, objectively, the reason for the refusal is somewhat strange.

The problem with the reliability of the fire system is a problem.

1 Like

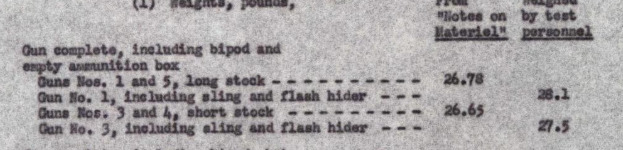

With ammo the right side, without ammo is the left side is empty
С патронами правая сторона - без патронов левая сторонаimage

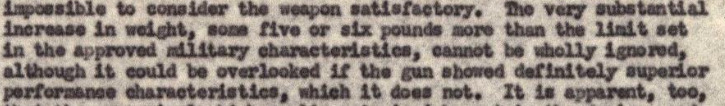

At least that what I assume cause right side says tested by personnel which means they were loaded while other side says notes from material which I assume was empty but who know I might be wrong but again it had a weight gain below image mentions weight gain over the desired weight for test we know from first report T23E1 was 1 pound above the weight limit here it mentions that T23E2 was 5 to 6 pounds above the weight limit
По крайней мере, я так предполагаю, потому что на правой стороне написано «Проверено персоналом», что означает, что они были загружены, а на другой стороне написано «Заметки из материала», что, как я предполагаю, было пусто, но кто знает, я могу ошибаться, но опять же, у него было увеличение веса, ниже на картинке упоминается увеличение веса сверх желаемого для испытания, мы знаем из первого отчета T23E1 был на 1 фунт выше предела веса, здесь упоминается, что T23E2 был на 5 - 6 фунтов выше предела веса

1 Like

how many 100rnd+ LMGs does the USA have now? 4? or was it 5?
